VSK100

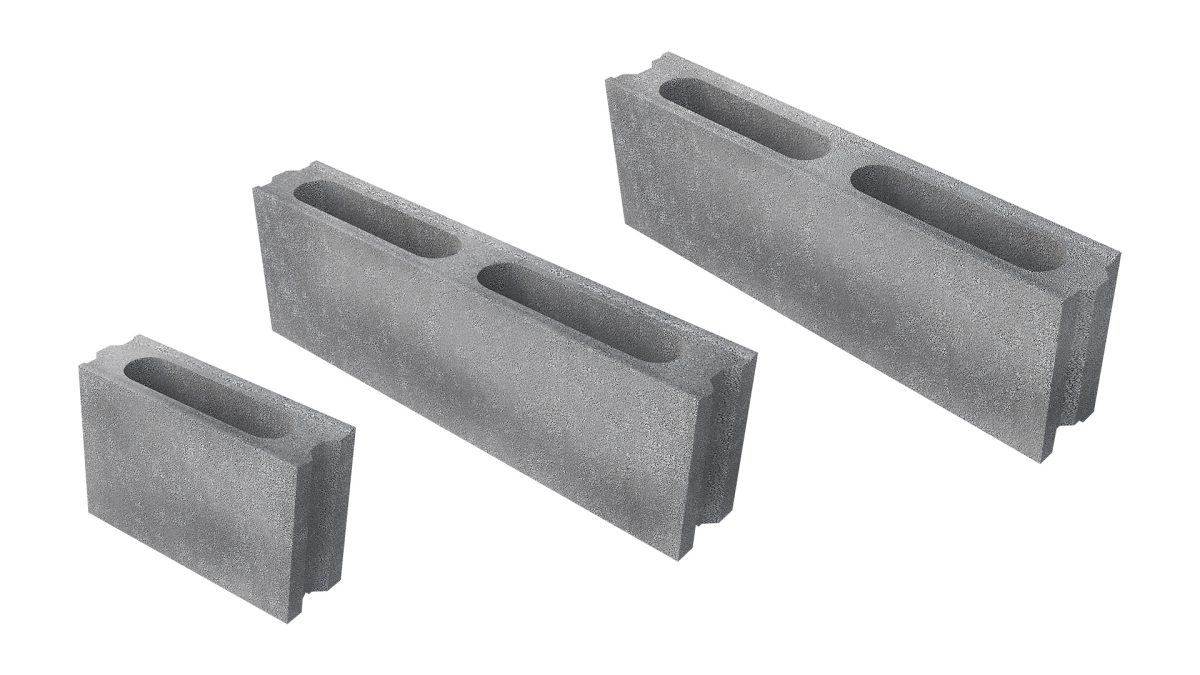

The VSK100 product family is a system comprising three blocks. In addition to the standard block, the system also includes a bridging block and a half-block. The block heights are designed to achieve the correct frame height using whole blocks.
At the bottom of the lintel blocks, there is a groove for lintel reinforcement. If necessary, the lintel block can also be used in place of the standard block.
At the start of block laying, half-blocks are used in every other course to achieve the required bond (3M = 300 mm). Half-blocks minimise the need for cutting and make installation easier. For lintels above doorways, galvanised lintel profiles are supplied, considerably speeding up their installation.
Electrical conduits and boxes, tap fittings and water pipes with protective sleeves can be installed in the casting cavities of the partition wall blocks. Once the surface has been levelled, the block wall can be finished by painting, wallpapering or tiling. Various types of fixings and wall-mounted items are also easy and secure to install in the hard block wall.
Interested in this product?
Request a quote or contact our sales team directly:
Iceland: Tel. +354 888 2510 / info@lammi.is
Finland: Tel. +358 207 530 499 / lammin.betoni@lammi.fi
| Concrete consumption | 45 l/m² |
| Block consumption | 8,7 pieces per m² |
| Finished wall weight | 112 kg/m² |
| Concrete-covered wall weight | 234 kg/m² |
| Fire classification | A1 |
| Sound insulation, Rw* | 38 dB |
| Declaration of Performance (DoP) | Download PDF |
| Product Certificate | Download PDF |
| Design and Installation Instructions (in Finnish) | Download PDF |
| Product and Packaging Details | |
| Product designation | VSK100 |
| Basic stone and crossing stone | 597x100x192 mm 14 kg |
| Half stone | 297x100x192 mm 8 kg |
| Pieces per pallet | 88 pieces per pallet* |
| Pallet weight | 1260 kg |
| Sold | By pallet |
| *A set of blocks has been packed onto the pallet, comprising 48 standard blocks, 32 bridging blocks and 16 half-blocks. This product is sold and delivered by the pallet only. | |
In addition to the standard block, the VSK100 product family also includes a bridging block and a half-block. The block heights are designed to achieve the correct frame height using whole blocks. At the bottom of the bridging blocks there is a groove for bridging reinforcement. If necessary, it is also possible to use the bridging block instead of the standard block.
At the start of laying the blocks, half-blocks are used in every other course, thereby achieving the required overlap (3M = 300 mm). Half-blocks minimise the need for cutting and make installation easier. For bridging over door openings, galvanised lintel profiles are supplied, which considerably speed up the forming of the bridging sections.
Electrical conduits and boxes, tap fittings and water pipes with protective sleeves can be installed in the casting cavities in partition wall blocks. Once the surface has been levelled, the block wall can be finished by painting, wallpapering or tiling. Various types of fixings and wall-mounted fittings are also easy and secure to install in the hard block wall.
