LL400

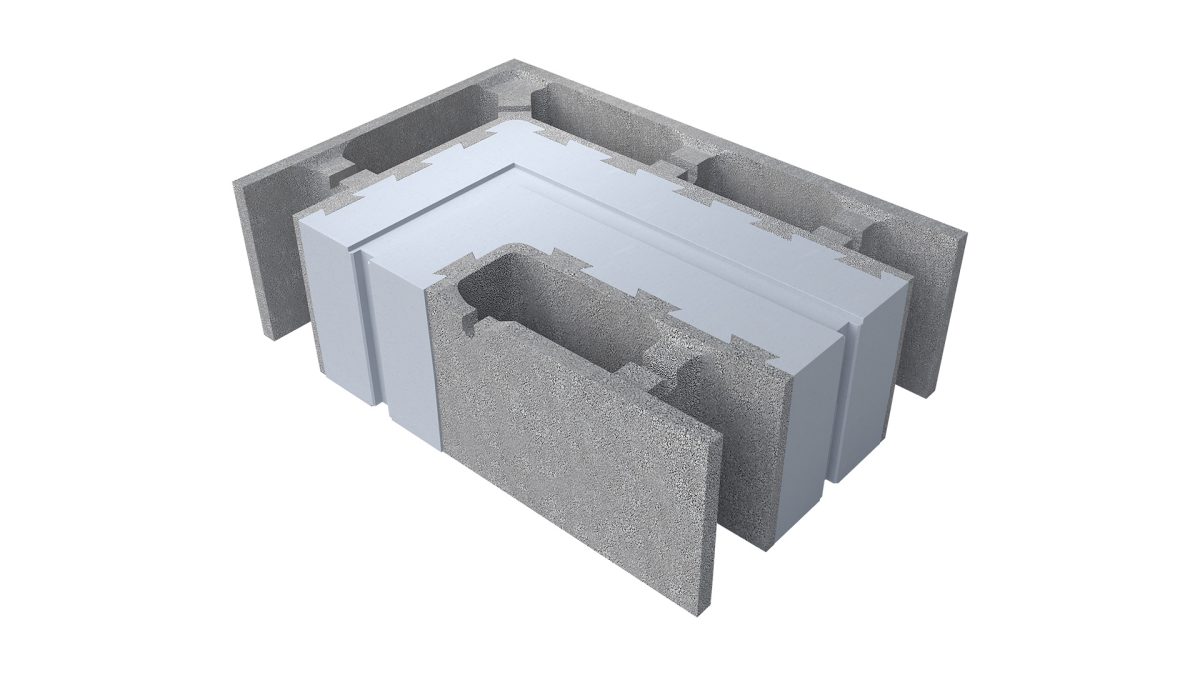

With a 400 mm corner block, it is easy to form the internal and external corners of a wall made of insulated concrete blocks. The block is designed to provide continuous thermal insulation throughout the corner. The corner block can be inverted as required. This also creates a 2M overlap (200 mm), which improves the stability of the stacked blocks.

The generously sized casting cavities and reinforcement slots ensure a uniform structure and straightforward installation, including at the building’s corners.

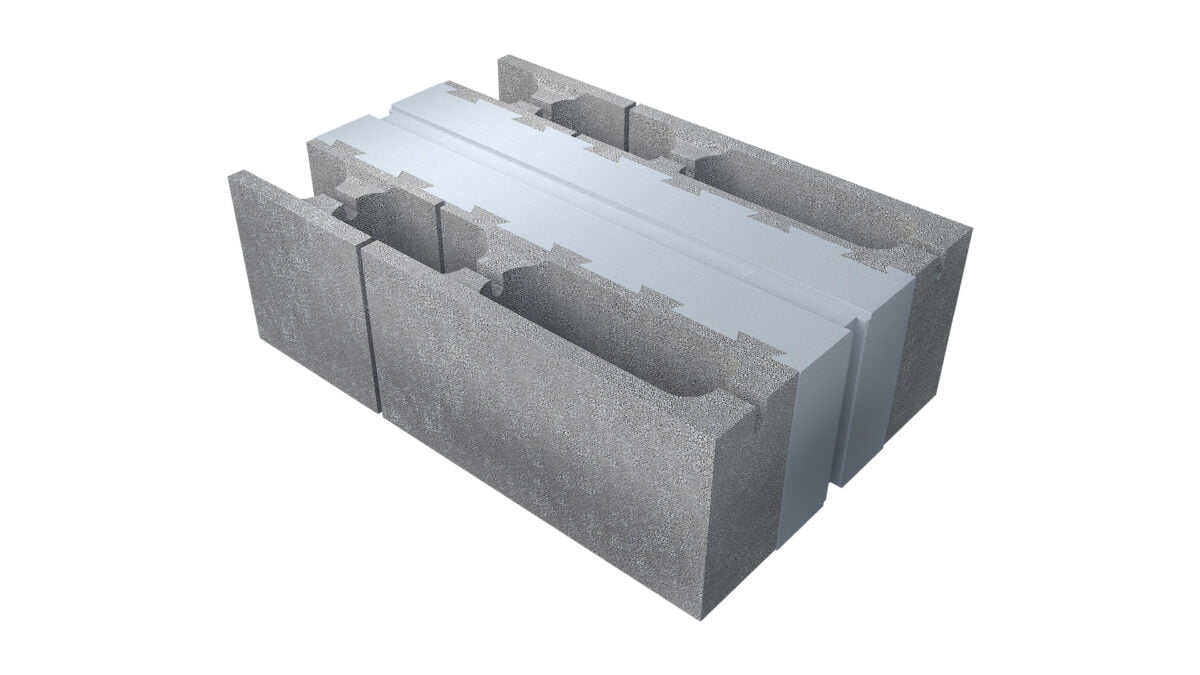

Pre-cut end blocks make it easy to form door and window openings in the building. Using end blocks eliminates the need for labour-intensive casting work around the openings.

The end block’s concrete shell is pre-cut at 200/400 mm, so the required overlap can be created simply by cutting away the block’s insulation section. The block can be used at its full length of 600 mm or shortened by sawing off the insulation section. This gives an end block measuring 400 mm. The remaining 200 mm-long block section can be used in the wall as normal.

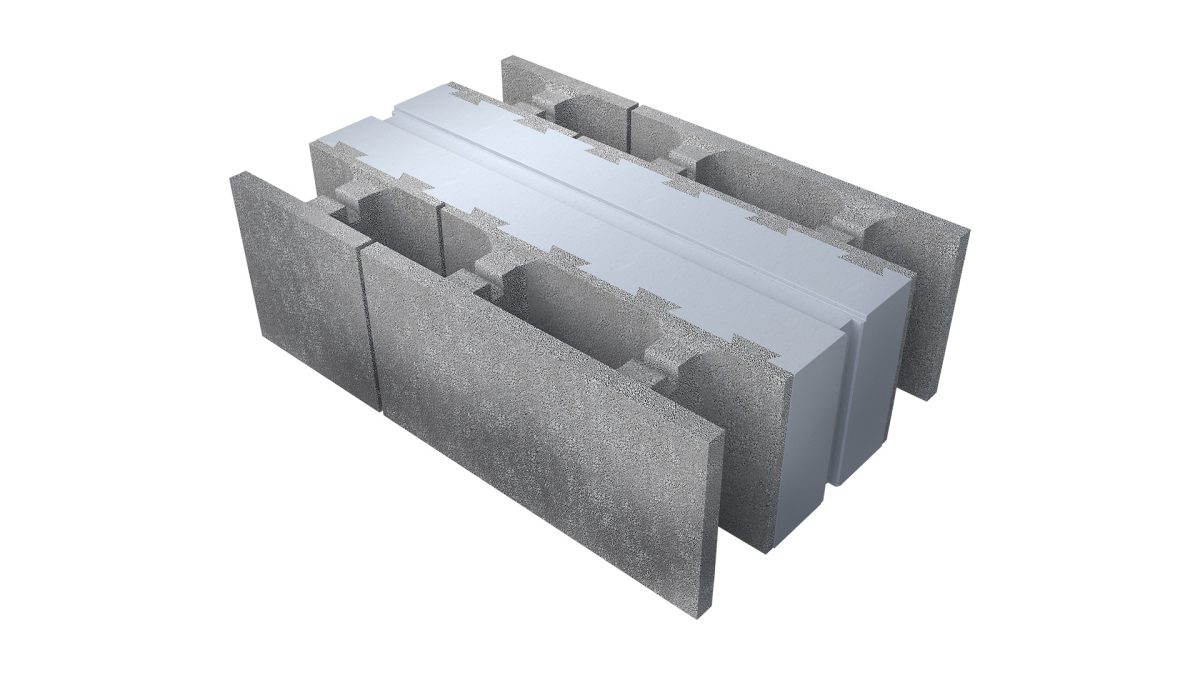

The LL400 product family includes a 600 mm long pre-cut partial block. This block is used in all applications where a straight 600 mm-long foundation block cannot be used. The concrete shells are pre-cut, allowing the insulation to be cut with a handsaw to divide the block into 200 mm and 400 mm sections.

Our product range is the most comprehensive on the market and forms a carefully coordinated system. When a building is designed using a 2M modular layout, we can provide ready-made products to suit the project. This eliminates the need for labour-intensive on-site casting and processing of the blocks.

The cut block is used as part of the wall structure at intermediate floor, ventilated ground floor and often roof slab junctions. This makes it easy to connect adjoining structures, such as hollow-core slabs. The cut block is installed as part of the wall cladding. At the corresponding level, the hollow-core slabs are fitted to the cast inner shell. Any additional insulation is then fitted, along with the dowels and ring reinforcement for the hollow-core slabs. The structure itself then serves as formwork for casting the joint.

The 175 mm-wide product can be used in all types of walls made from insulated concrete blocks. In wider walls (LL400 and LL500), the additional insulation is installed between the block insulation and the joint concrete before the joint is cast. The thickness of the additional insulation is determined in accordance with the structural design and the type of structure.
