Bridging products for forming beams

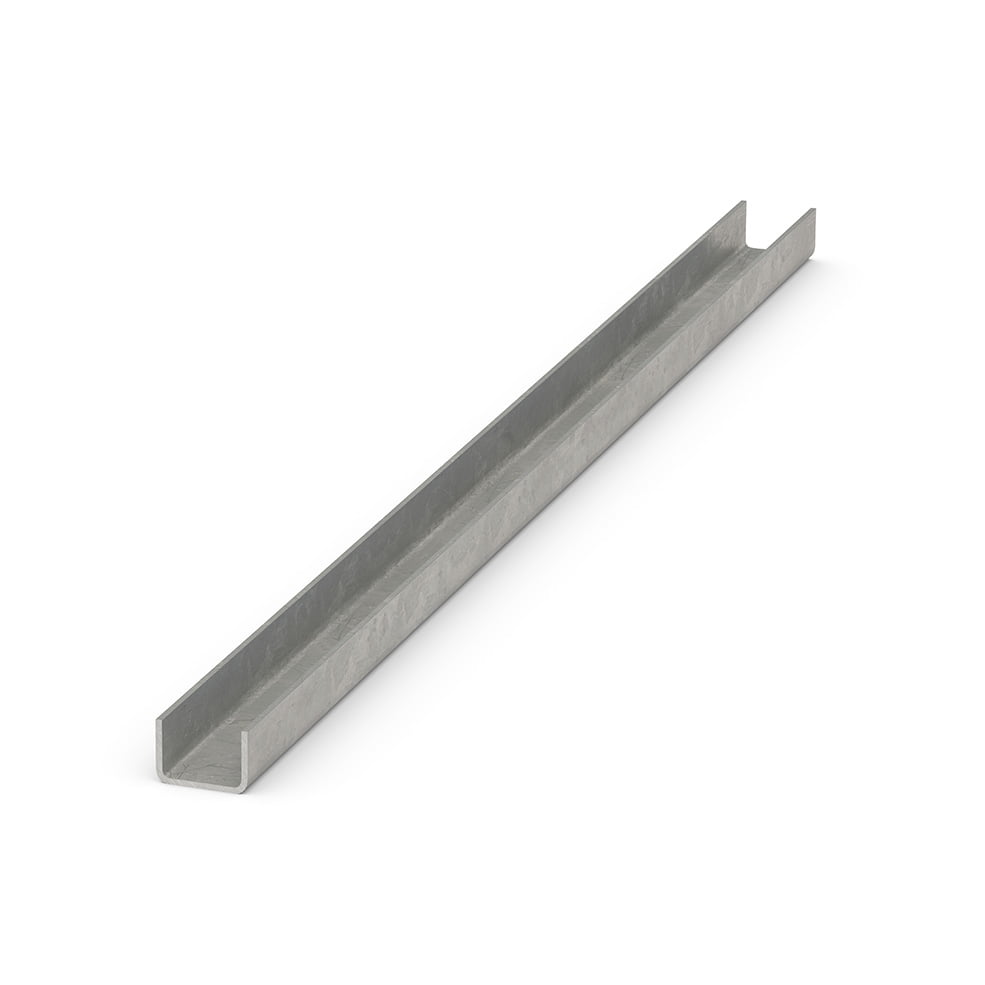

Lintel reinforcement steel profile 50

Forming lintels over openings with Lammi Partition Wall Blocks (VSK100) is straightforward using lintel blocks and a galvanised U-shaped opening profile. The lintel profile is cut so that it bears approximately 100 mm onto the support at each end. The reinforcement profile should be fitted so that the legs of the U-section point upwards. The lintel blocks rest on the opening profile, allowing the lintel to be formed quickly.



These accessories are required for the following block groups:
Product and Packaging Details
Product designationAYT50
Dimensions50 x 35 x 6000 mm
Weight15 kg
ConsumptionOpening width + 200 mm
Sales unitBy piece
